The World’s smallest smoke alarm!

Cavius is the world’s smallest Photoelectric smoke alarm, with some big features.

The aesthetically pleasing Photoelectric smoke alarm has a 10 year long-life battery, 10 year warranty, a penetrating sound at 85dB(A) at 3 meters, a 10 minute pause option, 30 day low battery warning and uses the unique “smart clip” ceiling mechanism for installation.

The smoke sensor includes a push button switch. This button has the following functions:

• Hush – during an alarm condition this immediately silences the alarm when pressed. When the button is released, the alarm remains silenced for 10 minutes.

• Test – when not in alarm the sounder can be activated to provide a sensor OK test function. While the button is pressed, the audible and visible indicators areacti-vated if the sensor is OK.

This environmentally friendly device is great value for money.

Download specifications:




USAGE:
Designed for installation in private homes, camping trailers, mobile homes and caravans. Not recommended for boats.

BATTERY TYPE:
Duracell 3V CR123A Lithium battery, 1600 mAh (non-replace- able).

POWER CONSUMPTION:
Battery consumption is 93mAhour in the non alarm condition.

BATTERY LIFE:
Minimum 10 year life in normal operating condition. (Based on a weekly testing).

LOW BATTERY INDICATION:
A short acoustic “beep” will sound and LED flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minmum 30 days, and can drive the alarm for 4 minutes.

NORMAL OPERATION:
LED flashes every 48 second for normal operation.

SOUND:
Audible indicator min. 85 dB @ 3 meter.

SOUND PATTERN:
Fire alarm condition is indicated by a series of three successive tones.

VISIBLE INDICATOR:
A red LED is used to indicate the following conditions:
• fire alarm condition is indicated by a flash every 0.5 seconds.
• smoke sense speed up is indicated by a flash every 2 seconds when the smoke level is at the alarm threshold.
• normal operation is indicated by a flash every 48 seconds.

PRODUCT WEIGHT (GR):
Base alarm weight (excluding screws, plugs and mounting ring): 43 g

DETECTION TIMING:
The alarm makes an optical reading every 8 seconds.At unusual readings (going into alarm stage), the readings are taken every 2 seconds.

INSTALLATION POSITIONS:

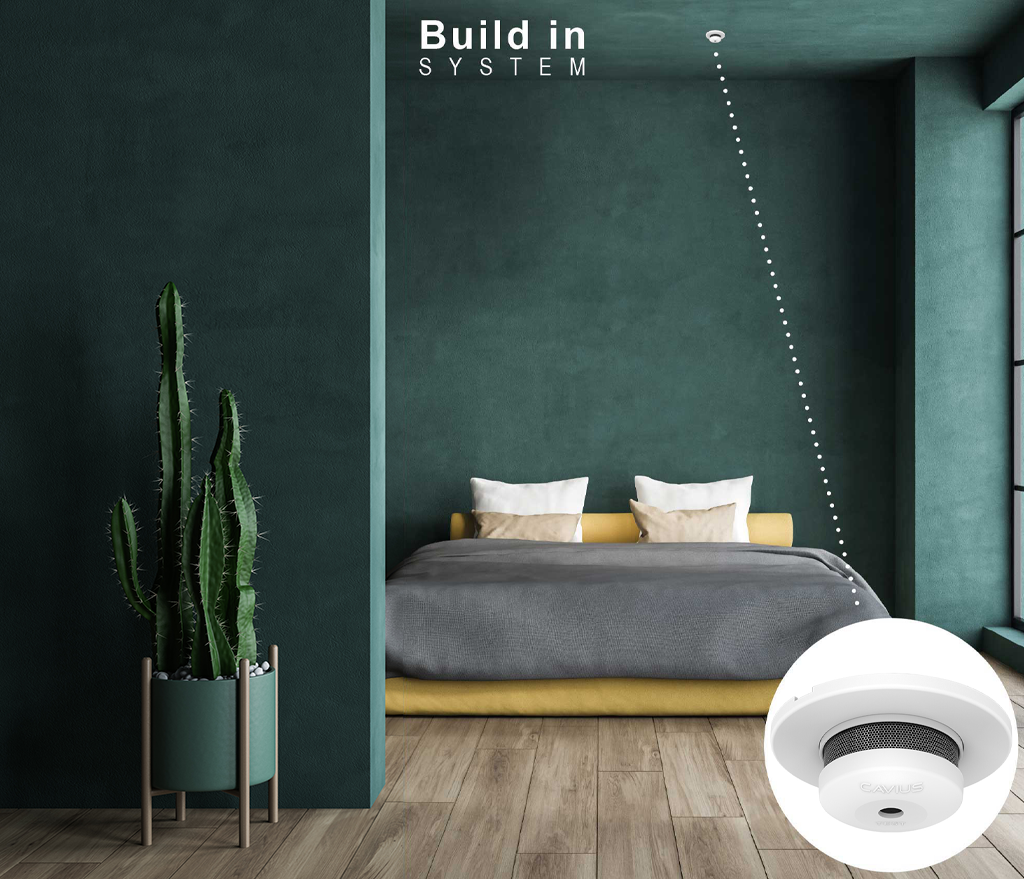

Ceiling. Not recommended for wall use. Set of 2 x screws and 2 x plugs included.

APPROVALS:
EN 14604:2005
EN60065 ROHS
REACH

AWARDS:
Red Dot Design Awards

ASSOCIATIONS AND COMMITTEES:
Cavius is member of the NF292 committee.
Cavius is member of GIFSID, manufacturers’ association of domestic fire safety equipment
